DESCRIPTION

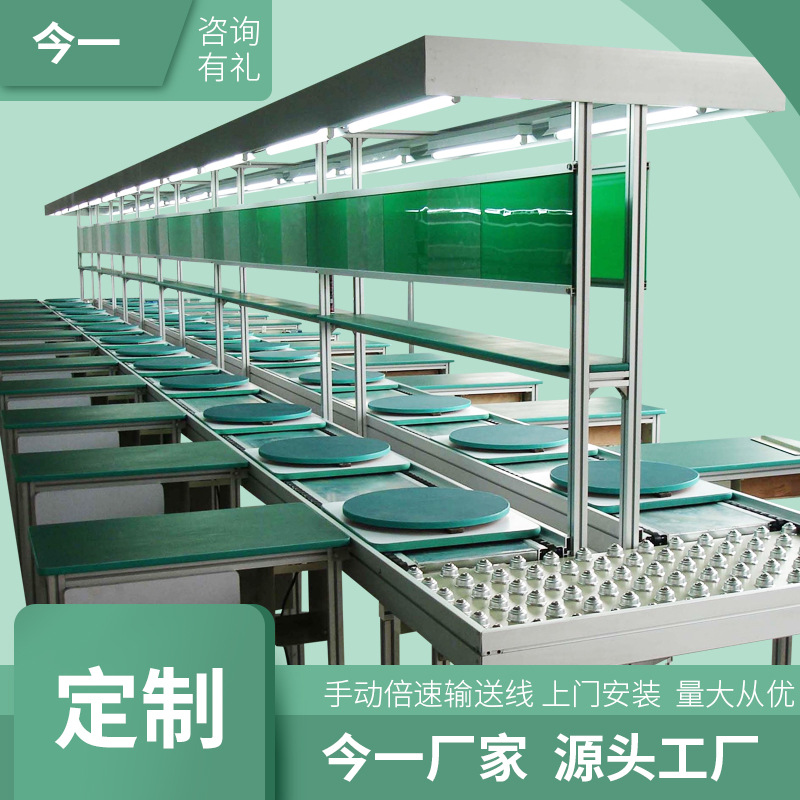

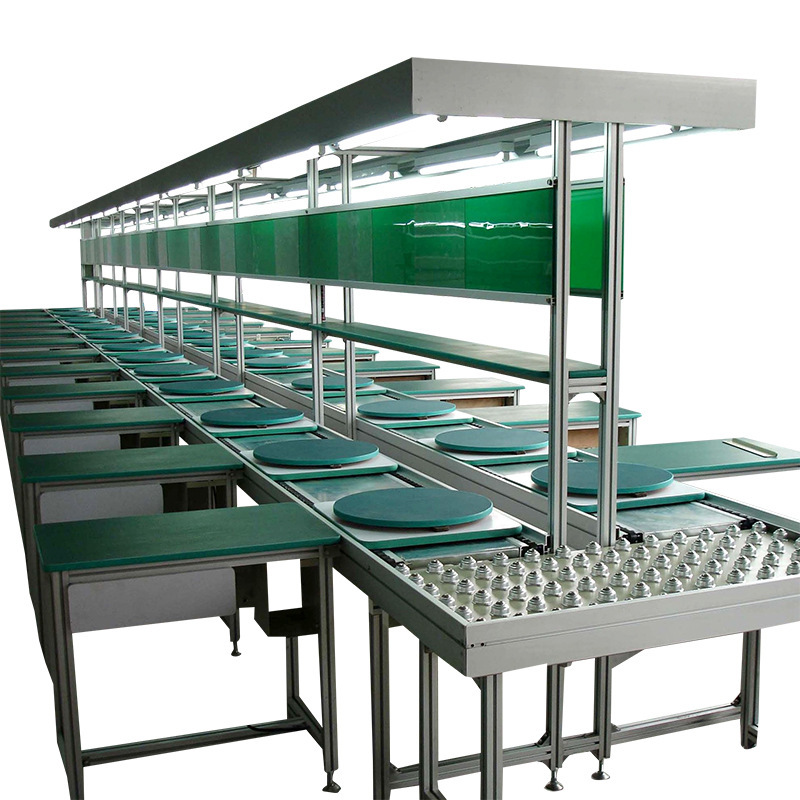

Main frame: The guide rail (edge guard) is made of 51 × 56 aluminum material; The tripod is made of 40 × 40 aluminum material, with intervals of 2 meters between each one; The lamp stand is made of 40 × 40 aluminum material, with intervals of 2 meters between each one.
Power: One 60W electronic speed regulating motor with built-in gearbox and speed regulator.
Conveying: Using 3/8 “nylon chains.
Lighting: 40W single shielded fluorescent lamp/T5 28W single shielded energy-saving lamp, double-sided configuration.
Process board: W300mm, connected and fixed with H aluminum profiles, equipped with an A4 paper bag (acrylic, with one in the middle) per meter.
Mechanical seat: equipped with one set.
Adjustable handle: one set, adjustable from 0-300mm.
Parts box: T1.5 cold plate bending production.
Workbench: T2.0 cold plate bending and edging.
Electric control box: made of cold plate bending, equipped with start and other switches.
Power cord: fluorescent lamp wire with 2.5 square meters of wire, socket wire with 4 square meters of wire, ground wire with 2.5 square meters of yellow wire.
Foot cup: Equipped with M12 adjustable foot cup for the feet.
Surface treatment: grinding, deburring, oxidation, spray coating (computer white) or customer specified.
Technical Parameter
Product Name
parameter
External dimensions
L3000 (or customized) × W600 (or customized) × H1900mm
Main frame material
Iron, aluminum, stainless steel (conventional iron)
Transmission speed
0.5-8m/min
Workbench
Cold board bending or T18 wooden board
Workbench size
W600mm (or customized)
lighting
T5 energy-saving lamp or ordinary lamp
scope of application
Circuit board processing industry (electronics, hardware, plastic, toy factories)
